BSL Battery Wall 51.2V - 200Ah (10.24kWh)

BSL Battery Wall 51.2V - 200Ah (10.24kWh)

R 49,599.00 ZAR
R 49,599.00 ZAR
Sale Sold out
Tax included. Shipping calculated at checkout.

Check Stock Availability

Payment Methods

Payments are Securely processed through our payment provider PayFast, you can learn more about them HERE.

We accept the following payments:

  • Credit & Cheque cards
  • Instant EFT
  • Snapscan
  • Masterpass
  • Zapper
  • Debit Cards
  • Mobicred
  • RCS Card

We also offer an EFT option that is not through payfast.

If you are having any issues processing your payment you can view the Payfast Server status HERE or fill in the 'Contact' form / Call 067 793 6849

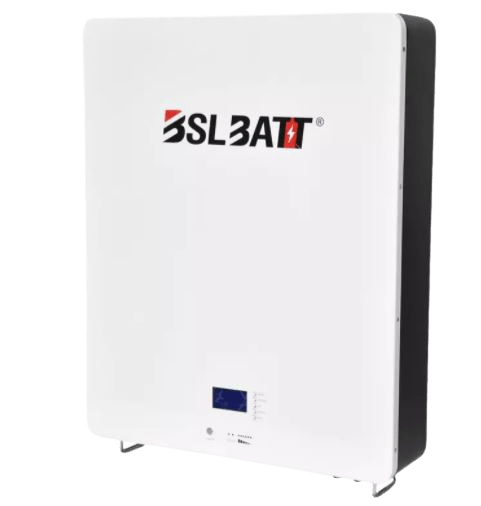

The BSLBATT Lithium Battery is a 10.2 kWh 48V Lithium Iron Phosphate (LFP) Battery with a built-in battery management system and an LCD screen that integrates and displays multilevel safety features for excellent performance. The BSLBATT Lithium Battery is maintenance-free and easy to integrate with solar or for independent operation to deliver power to your home day or night. Designed for backup power, off-grid, time of use, and self-use applications, the BSLBATT is consistently reliable and will keep your solar system operating during a power outage, or will use the energy stored from the daytime to power your home at night.

Highlights

  • Non-Toxic & Non-Hazardous Cobalt-Free LFP Chemistry
  • No Thermal Runaway with Fire Propagation
  • No Heat Generation, Mitigation, Thermal Monitoring or Toxic Cooling
  • Extended Operating Temperature -4 to 140F
  • 98% Efficiency Rate
  • Fast Charge & Discharge Rates
  • 10,000 Cycle Life with a 10 Year Warranty
  • Cycle One to Several Times Per Day
  • Seamless Integration with All Industry Standard Inverter/Charge Controllers
  • Built-In Safety – BMS with Breaker On/Off Switch for Shipping & Installation
  • Modular, Scalable & Proven Performance

Specification

Model BSLBATT LFP-48V Battery PACK
Electrical Characteristics Nominal Voltage 48V(15series)
Nominal Capacity 50Ah/100Ah/150Ah/200Ah
Energy 2400Wh/4800Wh/7200Wh/9600Wh
Internal Resistance ≤60mΩ
Cycle Life ≥6000 cycles @ 80% DOD, 25℃, 0.5C ≥5000 cycles @ 80% DOD, 40℃, 0.5C
Design Life ≥10.5 years
Months Self Discharge ≤2%，@25℃
Effificiency of Charge ≥98%
Effificiency of Discharge ≥100% @ 0.2C ≥96% @ 1C


Charge

 Charge Cut-off Voltage 54.0V±0.1V
Charge Mode 1C to 54.0V, then 54.0V charge current to  0.02C (CC/CV)
Charge Current 100A
Max. Charge Current 130A
Charge Cut-off Voltage 54V±0.2V(Floating charge voltage)
Discharge Continuous Current 100A
Max. Continuous Discharge Current 130A
Discharge Cut-off Voltage 38V±0.2V
Environmental Charge Temperature 0℃~60℃ (Under 0℃ extra heating mechanism)
Discharge Temperature -20℃~60℃ (Under 0℃work with reduced capacity)
Storage Temperature -40℃~55℃ @ 60%±25% relative humidity
Water Dust Resistance Ip21 (The battery cabinet supports Ip55)


Mechanical

 Method 15S1P/15S2P/15S3P/15S4P
Case Iron (Insulation painting)
Dimensions 780 x630 x160(220)mm
Weight Approx:30kg/48kg/70kg/96kg
Gravimetric Specifific energy Approx:92Wh/kg
Protocol (optional) RS232-PC RS485(B)-PC RS485(A)-Inverter CANBUS-Inverter
Other SOC Light 6 x LED
Display Screen LCD(Optional)
Limit charge current 20A
